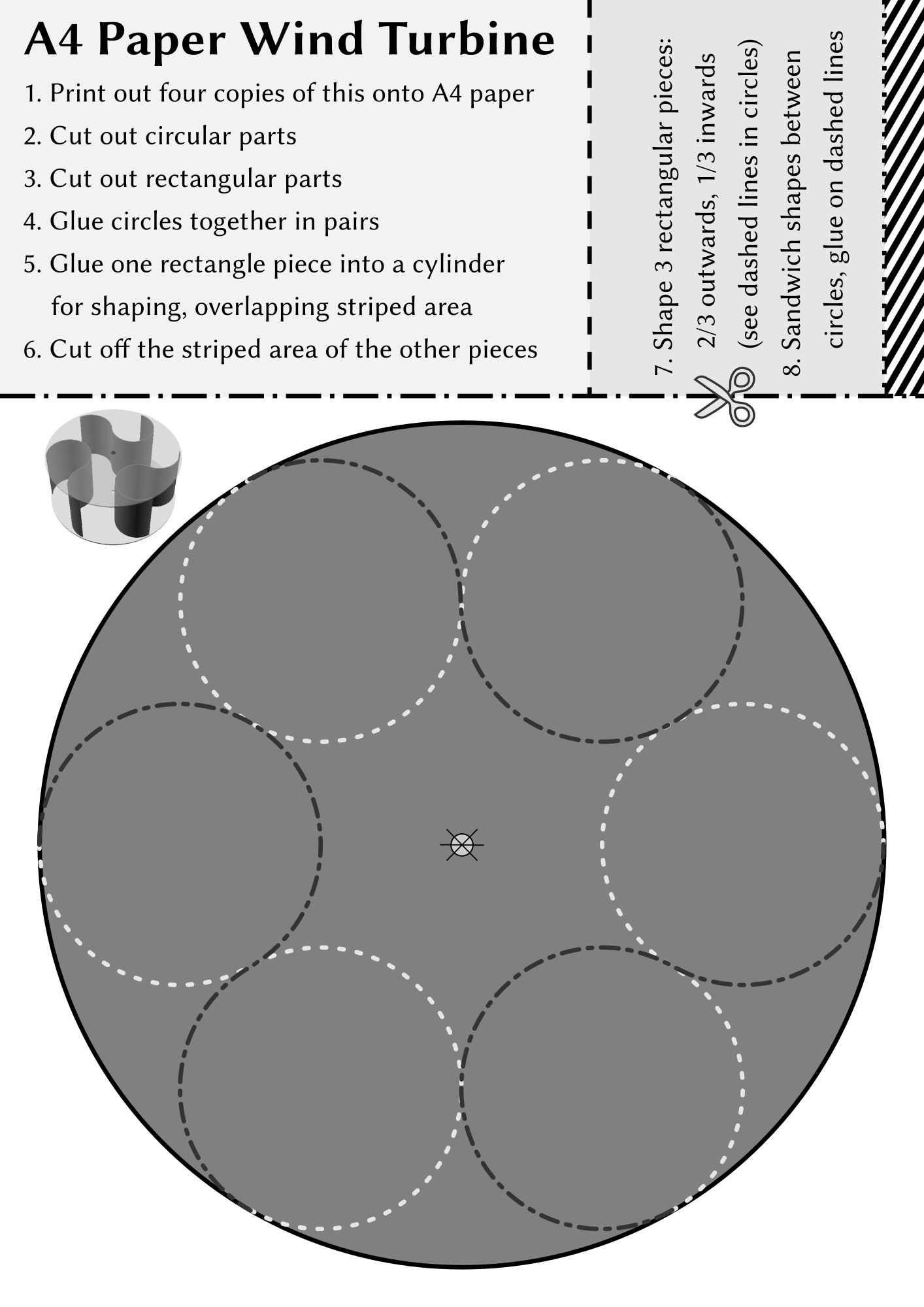

A4 Paper Wind Turbine (pathed text)

by gringer - uploaded on January 11, 2020, 11:13 am

Turbine utilising a combination of direct impact and cross-flow propulsion. This is based on the Ugrinsky turbine design with a simpler geometric construction composed of only circles. This design also has three pass-through channels, and three collecting blades.

Note: this is the same as the "A4 Paper Wind Turbine", but the Linux Biolinum text has been converted to paths so that it will display on computers without that font.

paper wind turbine windmill power breath
